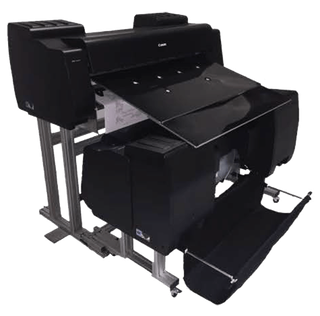

YDER DUO 244s & 260s Map Printer

The YDER DUO Map Printer has earned a reputation as the premier double-sided proofing solution in the world. The combination of Canon printer performance and a unique registration system has made the YDER DUO Map Printer the industry leader in speed, quality, accuracy and reliability.

IT IS FAST, ACCURATE AND PROFITABLE

FAST - You can achieve a top-end speed of 23 A1 proofs per hour at 1200 dpi.


ACCURATE - The time-tested camera registration system has made the YDER DUO Map Printer, without question, the industry leader in repeatability with a +/-1MM registration tolerance.


PROFITABLE - As a fully-automated solution, YDER DUO Map Printer achieves an unmatched level of efficiency with the least amount of operator involvement and the combination of Canon's superior ink yield and a cost-effective list of certified papers guarantee the industry's lowest cost per double-sided proof.



• Automatic double sided printing, No operator intervention required.


• Camera registration system achieves highest possible accuracy


• Up to 23 proofs per hour at 1200 dpi. More than twice the speed of our nearest competitor.

SPECIFICATIONS

Resolution

1200 x 1200 dpi

1200 x 2400 dpi


Print Modes

Draft, Normal and High Quality


Inks

160, 330 and 700 ml ink cartridges

8 colours - C,M,Y,K.PM.PC,GY and MBK


Interfaces

10/100/1000 Ethernet Connection


Media Feed Type

Paper Rolls


Media Width

DUO 244S -  1118 mm  (44”)

DUO 260S -  1524 mm  (60")


Media Length

91 m  (300’) to 137.16 m (450’)


Media Weights

Coated and Uncoated Papers from 14# to 24# are acceptable.


Input Formats

Can be connected to all known PrePress Workflows.


Electrical Requirements

100-120 VAC


Environment

Printing Range - 59O F to 95O F /  RH 20% to 80%Optimal Range - 72O F to 79O F /  RH 30% to 60%


Dimensions

DUO 240S - 63” wide by 51” tall by 84” deep (+ computer) Weight is approximately 450 lbs. assembled.


DUO 260S - 78” wide by 51” tall by 84” deep (+ computer)  Weight is approximately 600 lbs. assembled.
