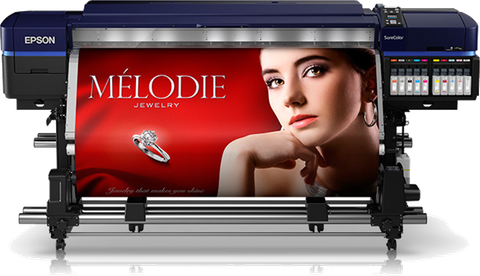

SureColor S80600 Printer

The 64-inch SureColor S80600 features newly-developed Epson UltraChrome® GS3 9-color solvent ink – including an all-new Red solvent along with the option for white or metallic silver inks – for outstanding photographic print quality, durability, and media compatibility. The SureColor S80600 is one of the most productive and photographic sign printers available.


The SureColor S80600 is capable of producing sellable quality banner at an astonishing 340 ft per hour, while also producing adhesive vinyl output at up to 195 ft per hour – making the new SureColor S80600 represents the finest print quality in the industry.



  • 64" (1625 mm) print width
  • USB 2.0 & gigabit ethernet
  • Up to 1020 sq.ft./hr
  • Print resolutions up to 1.440 x 1440


ON-DEMAND PRINTING / JUST IN TIME PRINTING

UltraChrome GS3 Inks



    Production capacity — high-capacity ink cartridges at 700 ml per colour

    Extreme colour gamut — produce vibrant images using just four colours

    Superior media compatibility — print on virtually any media type from adhesive vinyl to banner material

    Same day lamination — first solvent printers to offer same day lamination2

    Environmentally responsible — no special ventilation or air purification is required3.

    3M MCS warranty — the most comprehensive warranty program in the signage industry is now

    available on all standard UltraChrome GS3 Inks — more information

    Avery ICS Performance Guarantee – Verified and tested by one of the top media manufacturers in the

    world

    Epson S-Series Rewards program — earn up to five years of coverage simply by using genuine Epson ink

    and media




PrecisionCore TFP Print Heads


    Consistent Colour — efficient, precise and repeatable performance with excellent image quality

    Precision — low vibration meniscus control for highly accurate dot shape and placement

    PrecisionCore TFP printhead — one-inch wide print head with 720 nozzles per colour

    Epson Precision Dot — delivers best-in-class image quality at commercial-level print speeds

    Robust Print Head Design — designed specifically for the high-demands of production environments


Whats in the Box?

SureColor S80600 printer

Onyx GamaPrint Pro RIP

Substrate Support System

Additional Fabric Wiper and Air Filters

 Full Set of Cleaning cartridges (T696000)

Waste ink Bottle

Documentation

PRINTING TECHNOLOGY

  • Dual Advanced PrecisionCore® TFP® Print Heads
  • 10-channel, drop-on-demand, inkjet Print Head
  • Dual 9 Color (C,M,Y,K, Lc, Lm, Lk, O, R + W or Ms
  • Solvent Based Ink Chemistry

Ink Type:

UltraChrome® GS3


Minimum Ink Droplet Size:

4.2 picoliters; Variable Droplet Technology


Maximum Print Resolution:

1440 x 1440 dpi


Ink Configuration:

CMYKLcLmLkOR + W or Ms


Replacement Ink

Black T890100

Cyan T890200

Magenta T890300

Yellow T890400

Lt Cyan T890500

Lt Magenta T890600

Lt Black T890700

Orange T890800

Red T890900

White T890A00

Metallic Silver T890B00


Print Speed:

Draft - 1,020 sqft/hr

Production: Banner - 340 sqft/hr, Vinyl 195 sqft/hr

Quality: Banner - 195 sqft/hr, Vinyl - 140 sqft/hr

Nozzle Configuration:

Colour and Monochrome 720 nozzles per Colour


Maximum Paper Width:

64"


Maximum Print Width:

63.6"


Minimum Paper Width:

11.8"


Maximum Roll Diameter:

Up to 250mm


Maximum Roll Weight:

Up to 95lbs


Maximum Printable Length:

Maximum printable length limited by software application, OS, media length, and RIP


Take-up Reel:

Fully automatic “wind in” or “wind out” with tension control


Interfaces:

Hi-Speed USB 2.0 (1 port)

1000Base-T Ethernet (1 port)


Ink Shelf Life:

2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems


Systems Requirements:

Intel i7 or better 6GB memory recommended


Operating Systems:

Mac OS X 10.8x - 10.11x; Windows 10, 8.1, 7 (64-bit)


Server Systems:

Windows® 10,7, 8, Windows Vista® on Windows XP (64 bits)


Temperature:

Operating: 50 to 95 degrees F (10 to 35 degrees C)

Storage: -4 to 104 degrees F (-20 to 50 C)


Humidity:

Operating: 20-80%

Operating (Recommended): 40-60%

5-85% (no condensation)


Dimensions:

103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H


Weight:

615 lb (278 kg)


Power Supply Voltage:

Two (2) 110v Outlets


Rated Voltage:

AC 100 - 120 V, AC 200 - 240 V


Rated Frequency:

50 - 60 Hz


Power Consumption:

Operating: Approx. 650W or less

Standby Heaters On: Approx 520W

Standby Heaters Off: Approx 30W or less

Power Off: Approx 0.6 W or less

Sleep Mode: Less than 3.5W

One Gigabit Ethernet Port
