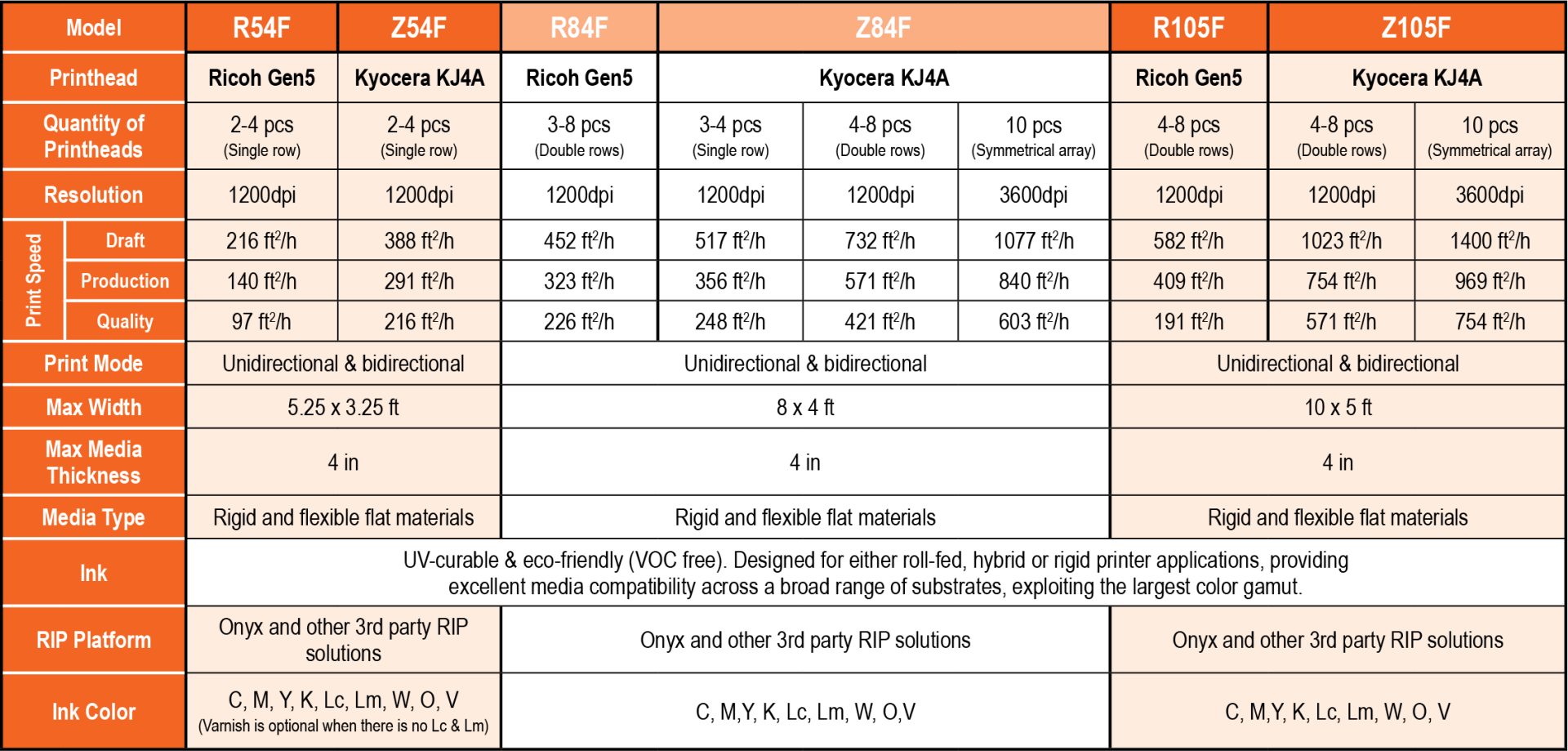

RF / ZF Flatbed Series
The RF / ZF Flatbed Series printers are capable of printing high-speed and high precision in up to 10 colours and 3600 dpi.
Ricoh Gen5Print Heads (Dual channel heads)
R54F / R84F / R105F
Featuring variable dots, true gray scale imaging 7, 14 and 21pl
- Up to 538 ft2/hr
- Up to 17+ boards/hr
- Up to 4" thick media
- Sizes: 5' x 3.25', 8' x 4' & 10' x 5'
- 4 vacuum zones
- Pin registration system
- LED curing standard
Designed for personalized processing enterprises to meet their high accuracy and personalized requirements.
Kyocera Print Heads (Dual channel heads)
Z54F / Z84F / Z105F
Featuring variable dots, true gray scale imaging
4, 6 and 10pl at true native dpi
- FASTEST FLATBED IN ITS SEGMENT
- Up to 1400 ft2/hr
- Up to 43+ boards/hr
- Up to 4" thick media
- Sizes: 5' x 3.25', 8' x 4' & 10' x 5'
- 4 vacuum zones
- Pin registration system
- LED curing standard
- Linear motor, magnetic rail system option for Z105F

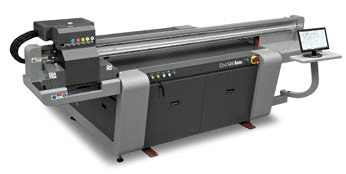

R54F /Z54F

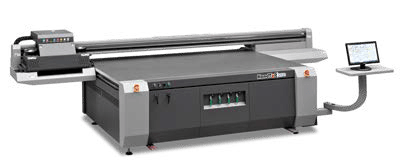

R84F /Z84F

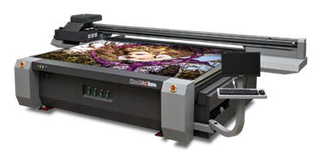

R105F /Z105F

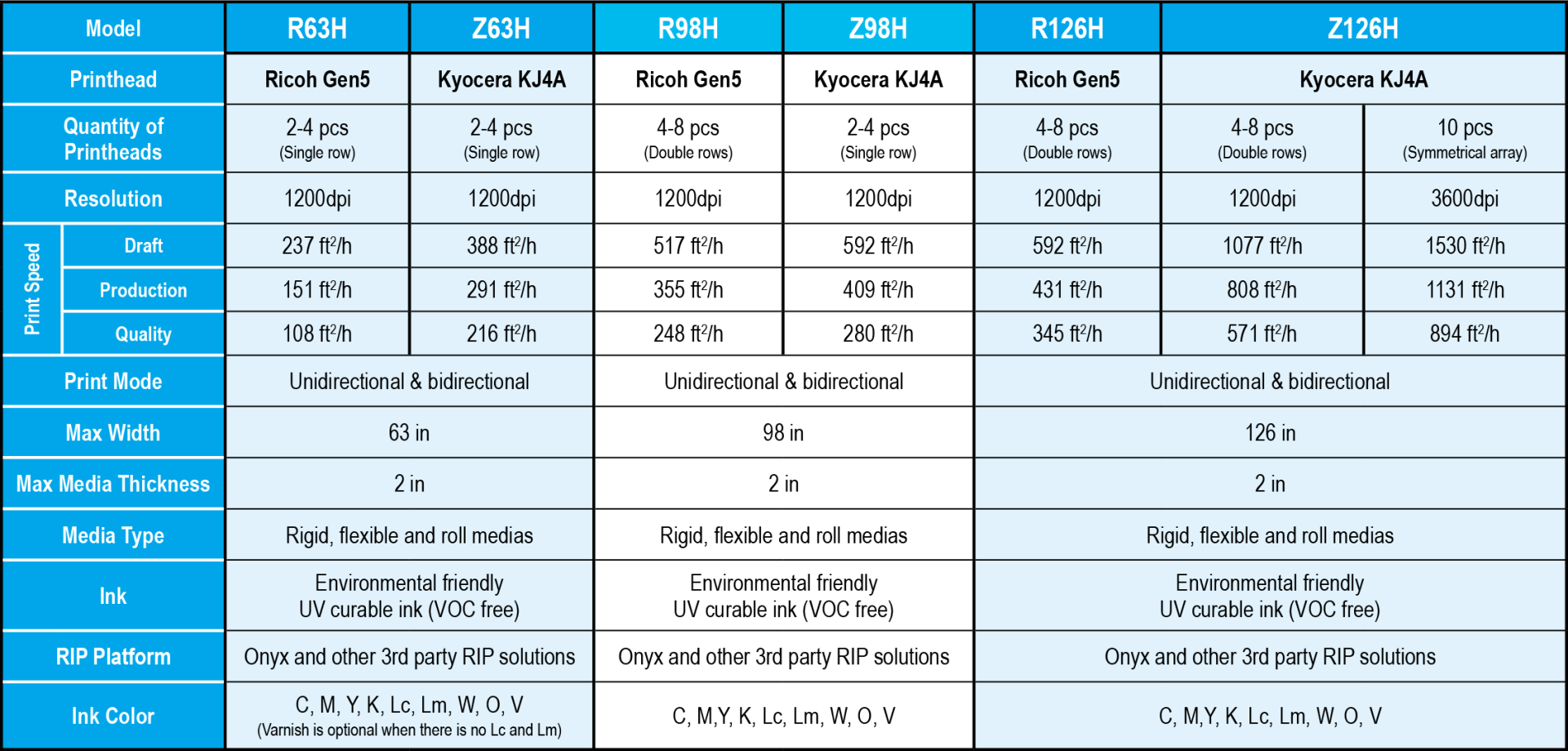

RF / ZF Hybrid Series
The RH / ZH Hybrid Series printers are capable of printing high-speed and high precision in up to 10 colors and 3600 dpi.
Ricoh Gen5Print Heads (Dual channel heads)
R63H / R98H / R126H
Featuring variable dots, true gray scale imaging 7, 14 and 21pl
- Up to 592 ft2/hr
- Up to 2" thick media
- Sizes: 63", 98", 126"
- 4 vacuum zones
- Retractable registration bar
- LED curing standard
Designed for small and medium-sized processing enter-prises to meet their multi-functional requirements.
Kyocera Print Heads (Dual channel heads)
Z63H / Z98H / Z126H
Featuring variable dots, true gray scale imaging
4, 6 and 10pl at true native dpi
- FASTEST FLATBED IN ITS SEGMENT
- Up to 1530 ft2/hr
- Up to 2" thick media
- Sizes: 63", 98", 126"
- 4 vacuum zones
- Retractable registration bar
- LED curing standard
- Linear motor, magnetic rail system option for Z126H*

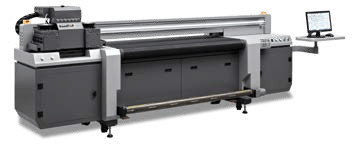

R54F /Z54F

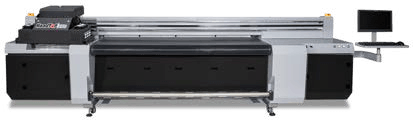

R98H /Z98H

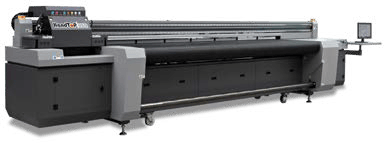

R126H /Z126H

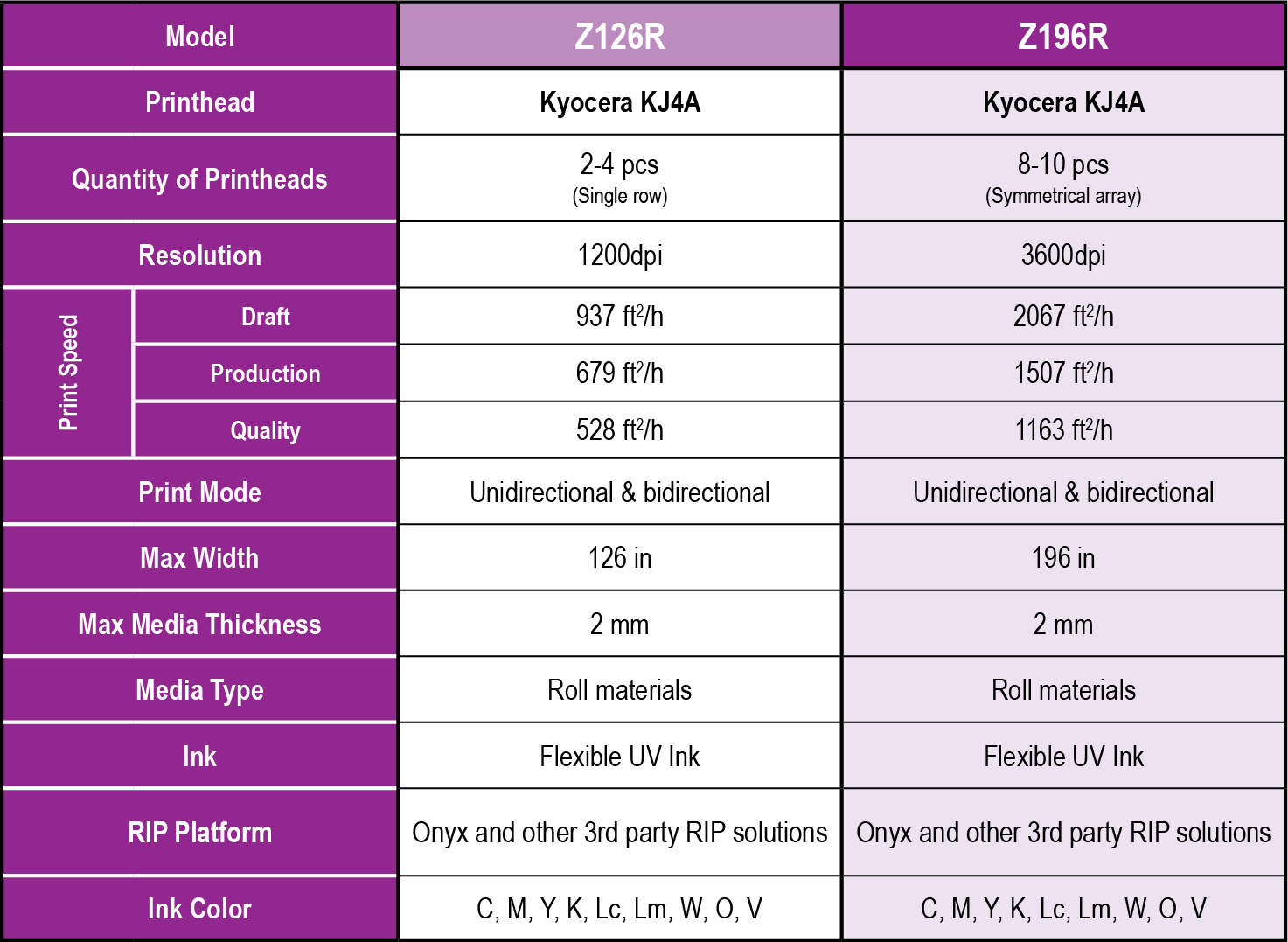

ZR Roll to Roll Series
The ZR Roll-to-Roll Series printers are capable of printing high-speed and high precision in up to 10 colours at 3600 dpi. The draft print speed up to 59 m2/h, which balanced the needs of speed and the output quality.
Kyocera Print Heads (Dual channel heads)
Z126R / Z196R
Featuring variable dots, true gray scale imaging 4, 6 and 10 pl
- MOST ECONOMICAL ROLL-TO-ROLL IN ITS SEGMENT
- Z126R up to 937 ft2/hr
- Z196R up to 2067 ft2/hr
- Up to 2mm thick media
- Sizes: 126” (3.2 meters) & 196” (5 meters)
- Mesh kits for printing on liner-less mesh media
- Linear motor, magnetic rail system option for Z196R*

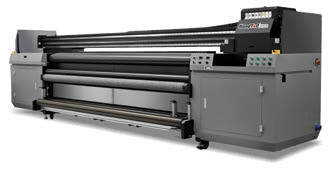

Z126R

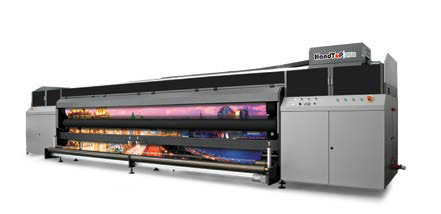

Z196R
