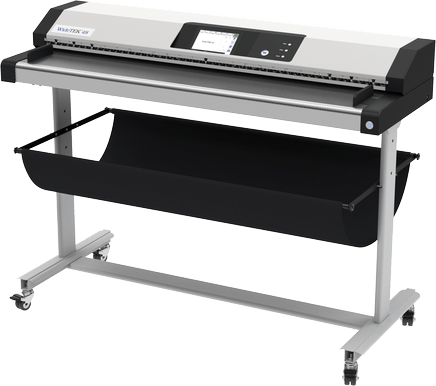

Wide Format 48" Wide CCD Scanner

The WideTEK® 48 wide format CCD scanner scans documents up to 48 inches wide (1220 mm). The new mainboard is an Intel® Core? Gen 9 processor which ensures faster data processing. Together with a faster 250GB SSD drive, internal processes and the system start time are significantly accelerated.

  • Intel® Core™ Gen 9 processor
  • Lightning fast image processing
  • Fast 250GB SSD
  • Powerful, silent micro stepping motors & controls

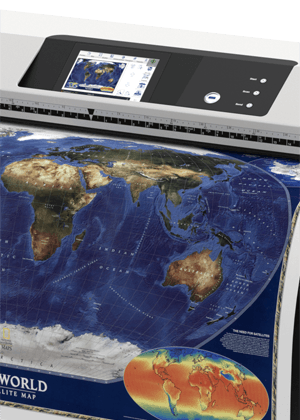

  • High resolution 7" multi-touch display
  • Improved ON/OFF switch
  • New firmware includes dark mode

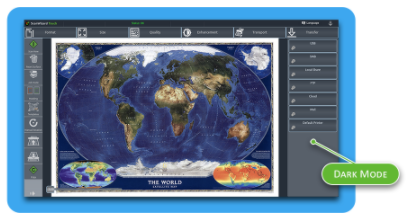

The new 7 inch multi-touch display with higher resolution increases the ease of use and improves workflow. And, the configurable dark mode enables the user to work ergonomically and in a way that is easy on the eyes.

Gentle Scanning of Fragile Documents

WideTEK® 48 wide format scanner gently scans due to special transport rollers that serve as pressure points ensuring safe document transport. For historical and fragile documents, this is critical.


The new background drum does not touch the glass plate at any time, avoiding scratches and document skews. For extra contrast on sepias and film based documents, the standard black background drum can be easily exchanged with a white drum, with no tools required.


Automatic document size recognition means that operators are flexible when feeding a source document into the sheetfeed scanner. It is not necessary to exactly center the document on the scan area. With crop and deskew, the resulting image output will be straight, centered and without black borders.


The user operates the wide format scanner either with a standard internet browser or alternatively, via the built-in touchscreen. A monitor directly connected to the wide format scanner can be used for image control or to modify the scan parameters, without a client PC. Using the touchscreen display, up to 30 different password protected jobs can be defined and stored. The jobs contain preconfigured settings such as scan parameters or directories on the network drives.

Easy to use walk up scanning or mobile scanning with Scan2PAD®

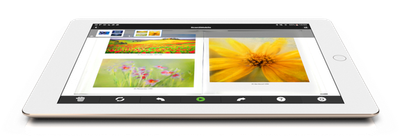

Scan2Pad® lets you control the WideTEK® 48 wide format scanner using an iPad or an Android tablet or even a smartphone running Android version 4.0.3 or higher. For full information on Scan2Pad®

WideTEK® 48 WIDE FORMAT SCANNER FUNCTIONS



  • Scans 48 inch widths
  • Fast colour scanning at 15 inches per second (22.9 m/min) @ 150 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop & deskew
  • Automatic format- and position recognition of source document anywhere on the scanning bed
  • Virtual rescan, modify images without rescanning
  • Configurable scan templates and target templates
  • Face up scanning
  • Real time display of scanned images
  • Wide color gamut, supports Adobe RGB, sRGB and native RGB
  • Standalone device with its own Linux PC
  • Direct output to the integrated USB-Port
  • Scan2Net -- Output to SMB, FTP, Printer, email
  • Output formats: Multipage PDF (PDF/A) & TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
    TIFF (Raw, G3, G4, LZW, JPEG) and many more
  • Complies to FADGI *** guidelines, ISO 19264-1




WideTEK® 48 WIDE FORMAT SCANNER FEATURES



  • LED lamps, no warm up, IR/UV free
  • Large color 22 inch touchscreen for direct operation without external PC
  • ScanWizard -- integrated scan application for use with any browser: IE, Edge, Safari, Chrome, Firefox
  • Multilanguage support, customizable user interface
  • Closed loop calibration software
  • Durable, antistatic, all metal paper path
  • Virus resistant Linux OS
  • OS independent, runs with Windows 8, 10, Linux, Mac
  • Gigabit Ethernet Interface
  • Integrated walk up scanning software
  • Easy installation via Scan2Net® Technology
  • Remote maintenance and troubleshooting
  • Firmware updates via web interface


WideTEK® 48 WIDE FORMAT SCANNER OPTIONS



  • Transparent document carriers for fragile document handling, available in two sizes: A0 and A1
  • Batch Scan Wizard -- Software option for high volume scanning
  • TWAIN Interface -- Software interface option
  • Scan2OCR -- Background text recognition already during the scan job
  • PrintWizard -- Option for direct communication with
    Canon TDS (ColorWave, PlotWave) and iPF, HP PageWide and DesignJet, Epson SureColor
  • Scan2ICC -- Subscription for ICC color management and profiles
  • Scan2Pad® -- Operation via tablet, smartphone or other mobile device
  • Extended resolution -- Extend the resolution to 9600 dpi
  • Full Coverage Warranty -- Up to 5 years subscription for full coverage warranty package and free spare parts

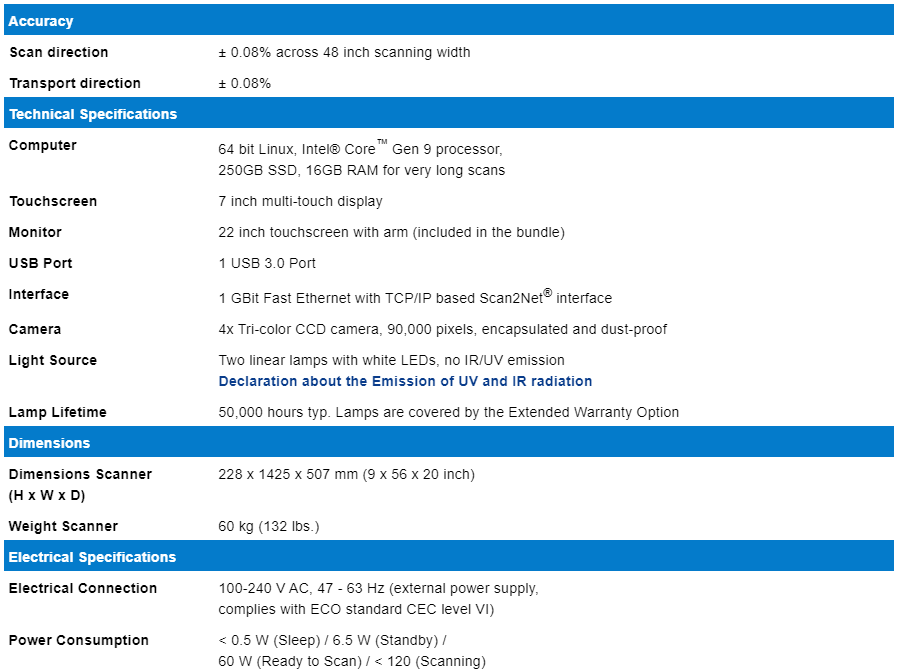

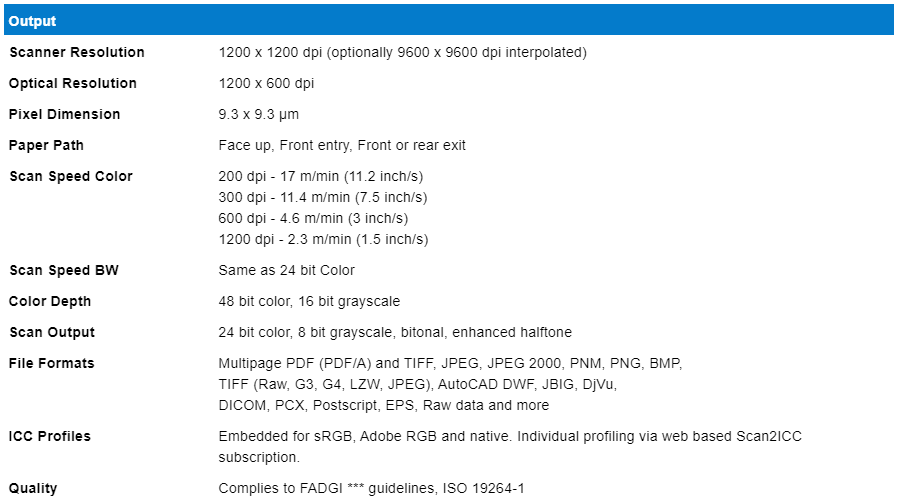

SPECIFICATIONS
